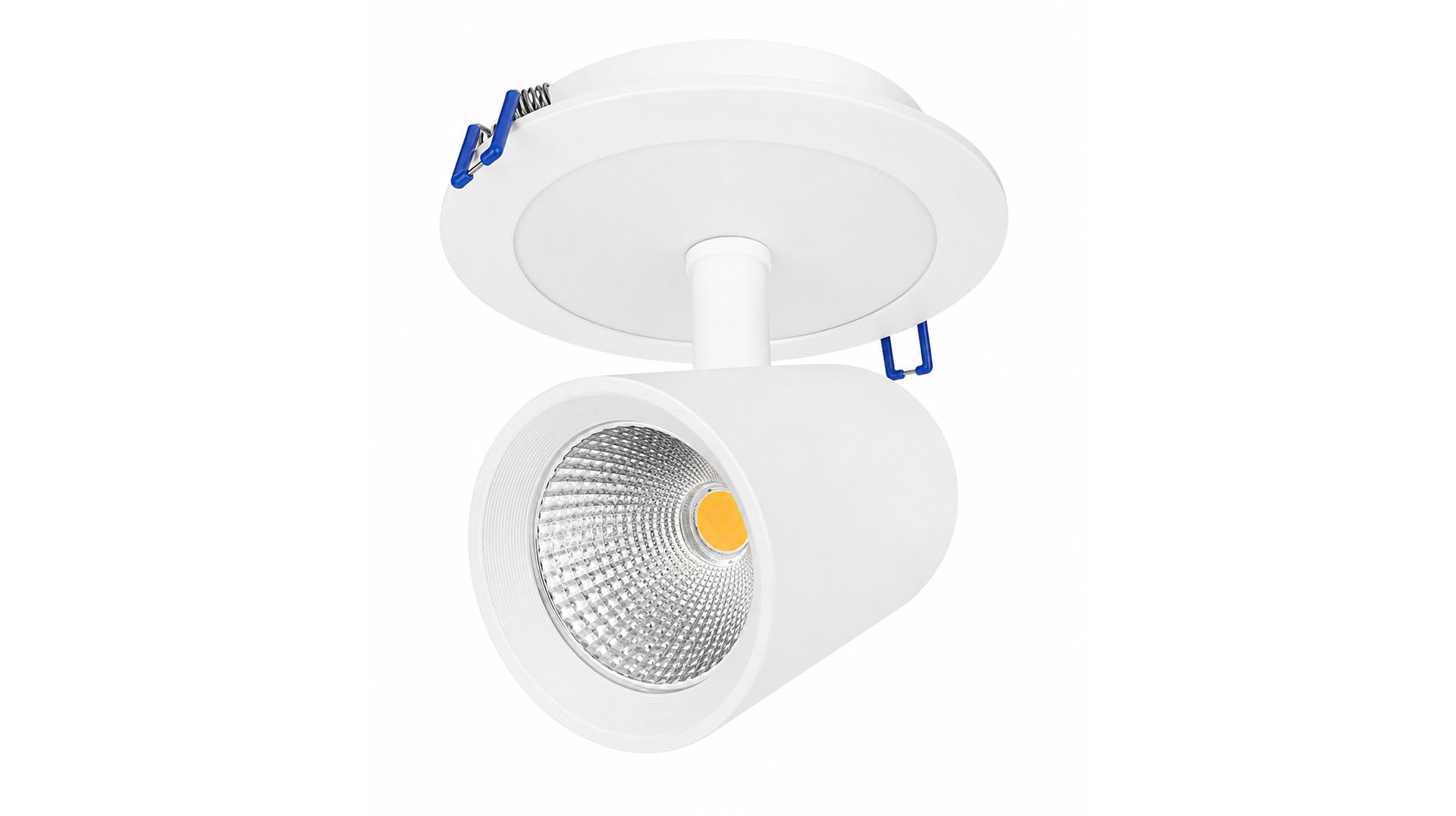

TL-R

TL-R - Image 2

TL-R

Select your product specifications below:

Plug Power

Colour Temperature

Beam Angle

Fitting Colour

Control Type

Clear

Product Code: Please select your specs above Product Type Track Lights Tag TL-R

Technical Information

Product	Plug	Luminaire Output (lm)		Beam	Fitting
Code	Power (W)	3080 (3000K)	4080 (4000K)	Angle (°)	Colour
TL10-R	9.53	1179	1237	12°, 24°, 45°, 55°	WT, BK
TL15-R	13.94	1556	1647	12°, 24°, 45°, 55°	WT, BK
TL20-R	19.94	2191	2346	12°, 24°, 45°, 55°	WT, BK
TL30-R-S	32.5	3521	3785	12°, 24°, 45°, 55°	WT, BK
TL25-R	28.04	2961	3155	15°, 30°, 45°, 60°	WT, BK
TL35-R	36.51	3962	4259	15°, 30°, 45°, 60°	WT, BK
TL45-R	43.43	4259	4516	15°, 30°, 45°, 60°	WT, BK

Product Information

Fitting Material	Powder coated high pressure die cast aluminium housing and trim ring
Available finishes	WT (White), BK (Black) – Other colours on request
Optic Type	Reflector
IP Rating	IP20
Mounting Type	Recessed Ceiling
LED Colours (CCT)	3000K, 4000K + specialty retail, food and health colours
LED Colour Consistency	<3 SDCM
Colour Rendering Index (CRI)	CRI80, CRI90 (CRI95+ on request)
LED Lifetime	L80B10 >50,000 hrs at Ta = 25° Celsius
Control Options	Non-dim (N), DALI-Dim (DALI)
Operating Voltage/ Frequency	220 – 240 V/ 50 Hz
Optional Add-ons	Compatible with specific motion and light sensors
Warranty	5-year warranty as per LEDwise standard terms of warranty
Manufacture	Designed and manufactured in South Africa

Request IES File
